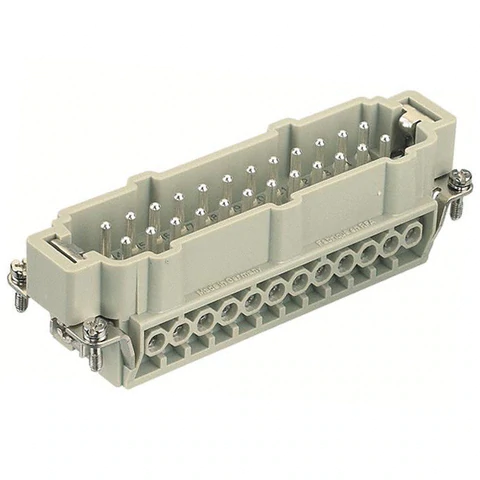

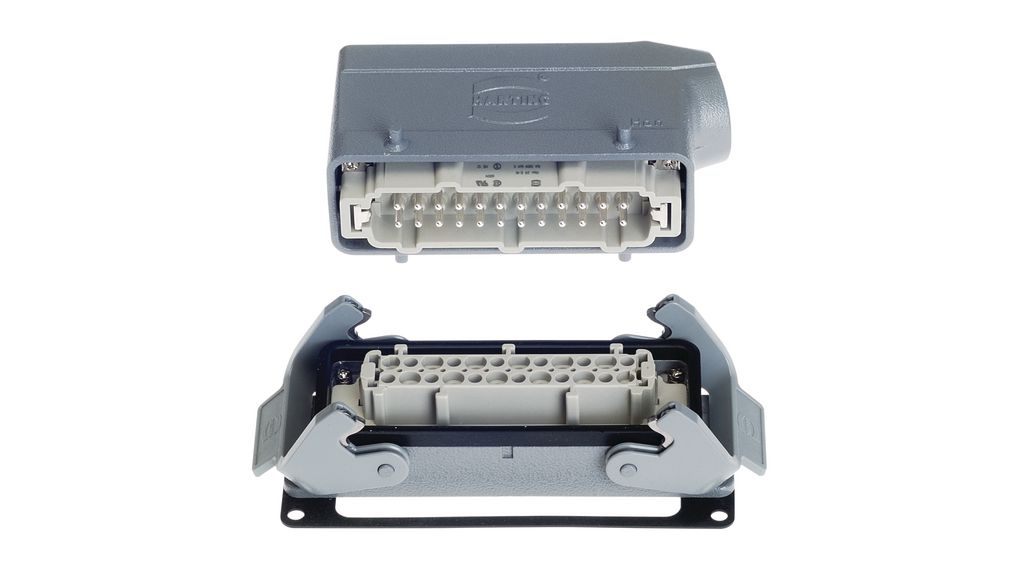

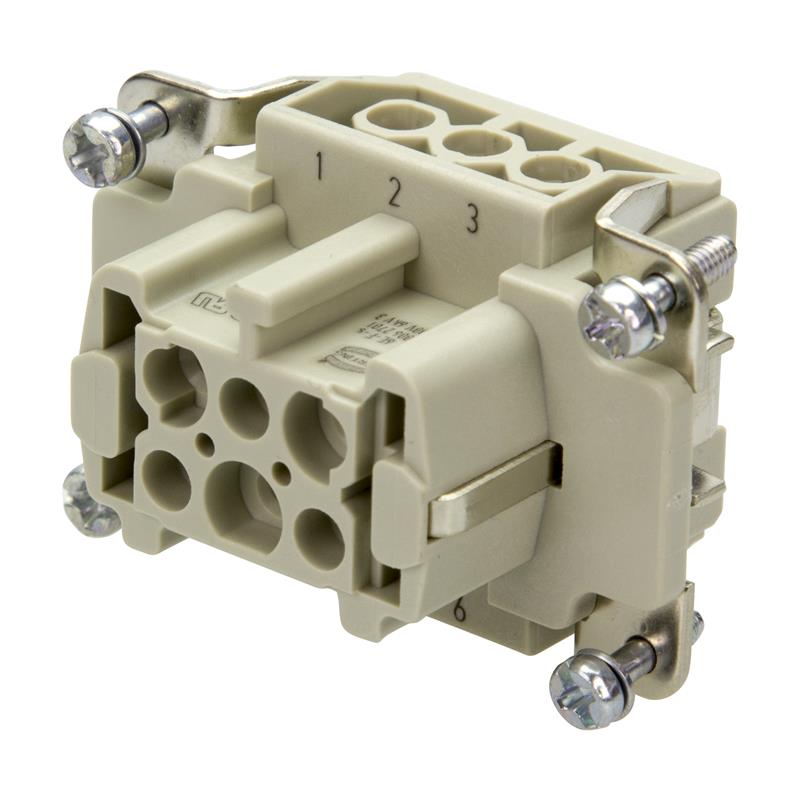

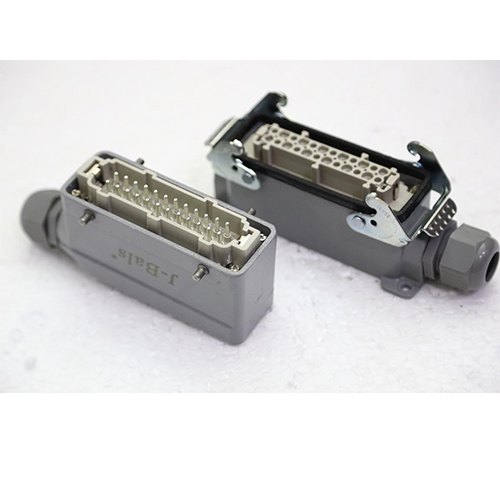

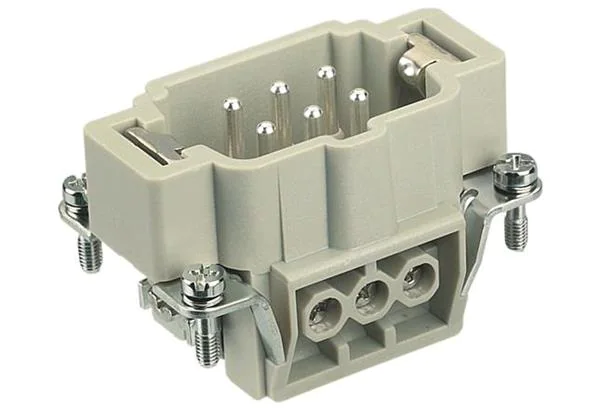

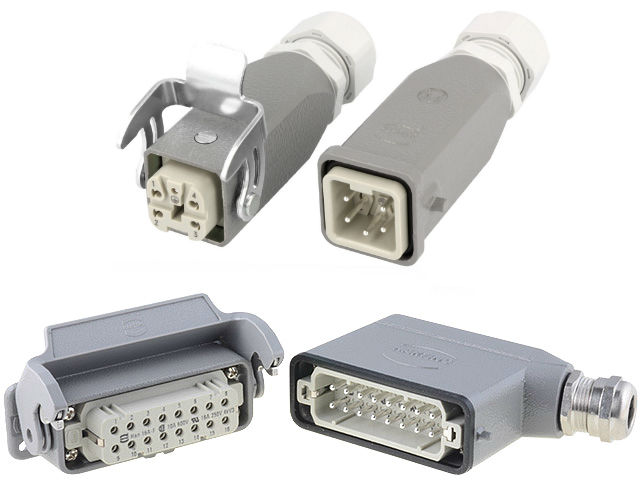

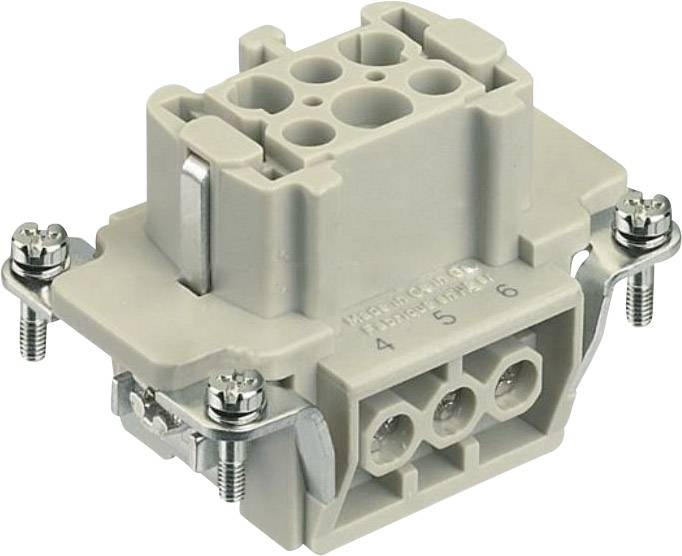

Giắc cắm phích cắm công nghiệp 16A
Phích cắm công nghiệp , phích cắm nguồn , phích cắm tín hiệu , một số loại có sẵn ,
| Number of contacts | 6-32+PE |
| Working current | 16A |
| Working voltage | 250V |
| Rated impulse voltage | |
| Pollution degree | 3 |
| Insulation resistance | ≥1010Ω |
| Material | PolyCarbonate |
| Flammability acc.to (UL94) | V0 |
| Limiting temperatures | -40℃...+125℃ |
| Mechanical working life (mating cycles) | ≥500 |
| Working voltage acc.to UL/CSA | 600V |
Contacts
| Material | Copper alloy |
| Surface | silver- plated |
| Contact resistance | ≤1mΩ |
| Terminal | Screw terminal |
| Wire gauge | 1.0-2.5mm²(AWG18-14) |
| Screw terminal tightening | 0.5Nm |
